Botanica Garden Doors combine innovative styling and engineering design with energy-efficient performance that complement any home. Botanica Garden Doors come standard with stainless steel operator hardware at no additional cost. This line also offers 6-9/16" jambs for 2" x 6" construction.

Botanica Garden Doors are manufactured from virgin vinyl compounds that insure a maintenance-free high-strength door. The multi-hollow, fusion-welded design adds structural integrity to resist warping, bowing, and twisting.

Botanica Garden Doors offer a unique "rain shed" weather-stripping design, full height gear hinge, and a warm edge spacer system for energy efficiency. They are available in single entry, French or Center-hinged styles and come in three colors.

Botanica Garden Doors:
  • Lifetime warranty on door unit, screen, and hardware.
  • NFRC Certified
  • Ten year warranty on insulated glass.
  • AAMA Certified
  • Test data available upon request.
  • See distributor for full warranty details.

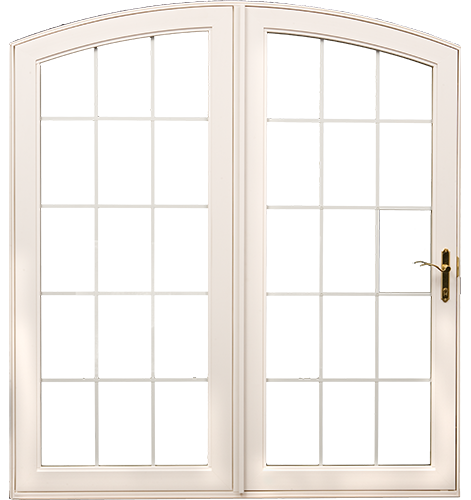

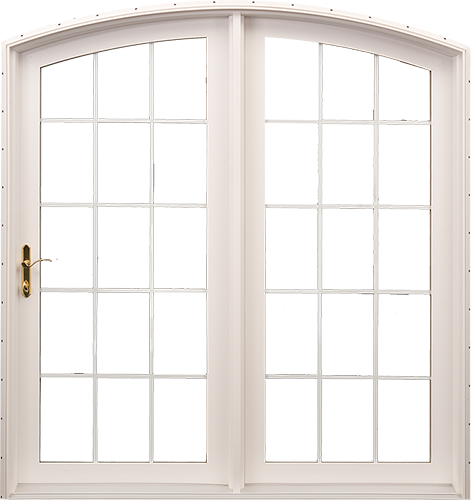

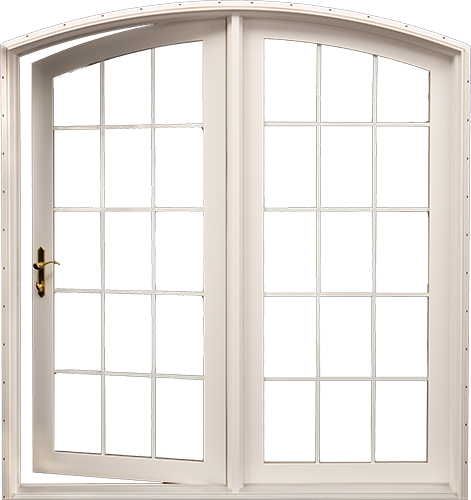

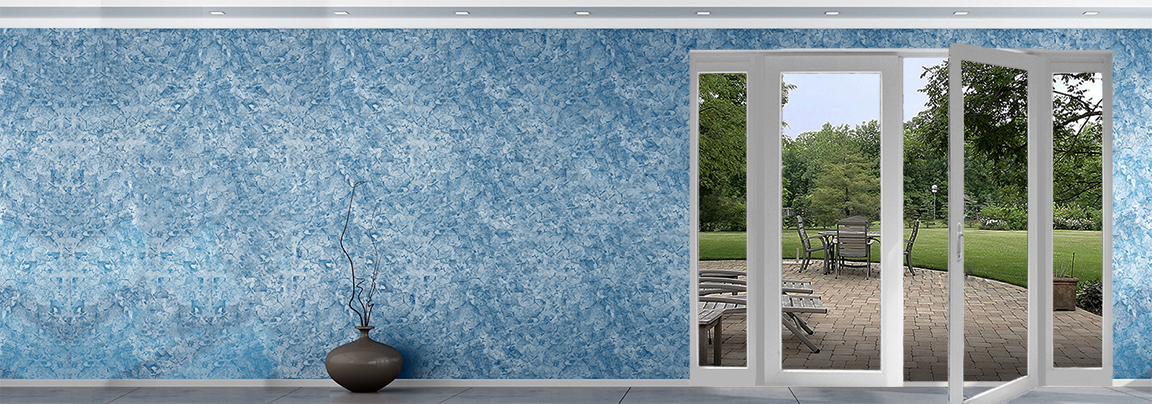

Garden Door
opt-1
opt-2
opt-3
Click on the thumbnails to view enlarged images

All In-swing Doors

Width Height
59 ½ 79 ½ or 81 ½
71 ½ 79 ½ or 81 ½
All lengths are in inches. Custom Sizes are available.
Arch Series
Width Height
59 ½ 81 ½
71 ½ 81 ½
All lengths are in inches.

French Doors

Width Height
59 ½ 79 ½ or 81 ½
71 ½ 79 ½ or 81 ½
All lengths are in inches. Custom Sizes are available.
Arch Series
Width Height
59 ½ 81 ½
71 ½ 81 ½
All lengths are in inches.

Single Patio Doors

Width Height
29 ¾ 79 ½
35 ¾ 79 ½
33 ⅝ 81 ½
37 ⅝ 81 ½
All lengths are in inches. Custom Sizes are available.
Arch Series
Width Height
33 ⅝ 81 ½
37 ⅝ 81 ½
All lengths are in inches.

Explore Standard Features

Click any number below to view a feature and highlight the interest point

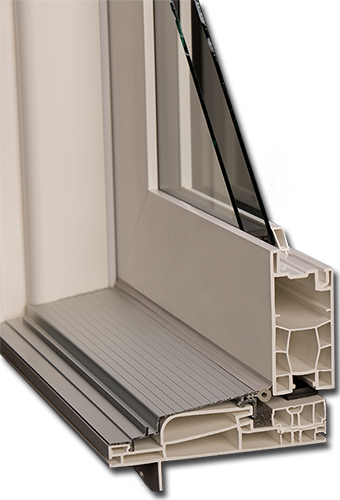

7/8" tempered clear insulating glass featuring a warm edge space. (1" also available)
Fusion welded frame and sash for greater strength, durability and protection from air/water infiltration.
Multiple internal air chambers provide layers of insulation even in the warmest or coldest temperatures.
Sloped anodized aluminum sill resists wear.
Full perimeter weather strip keeps cold out and warm in.
Integral nail-fin for airtight installation.
4/16 - 9/16" and optional 6/16 - 9/16" jambs for regional construction requirements.

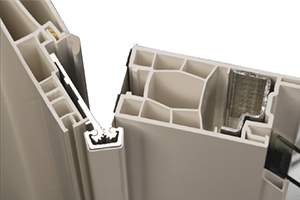

Full height anodized aluminum gear hinge provides incredible structural strength to door panel.

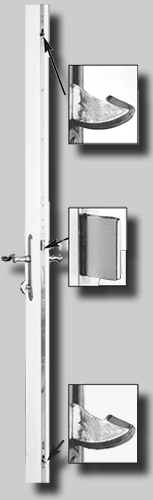

Multi-point lock system with stainless steel hardware deadbolt and key lock for optimal safety.
Additional flush bolts at head and sill on inactive panel of French door.
Standard center deadbolt with key lock affords optimum security, color options in polished brass, polished chrome, brushed chrome, antique brass, matte black, oil-rubbed brass, satin nickel, or white.

Accessories

Botanica Garden Doors are available with a wide range of standard sized Sidelites and Transom windows as well as custom sizes.
High Performance Low-E glass is available for insulating enhancement and provides UV protection to carpets, drapes and furniture.

Grilles

Choose from grille patterns between the insulated glass to create that traditional colonial look to your new door. Also available with "Queen Anne" perimeter style grides in either flat or contour grid styles.

Color Chart

Colors are uniform and consistent throughout the thickness of material requiring only soap and water to keep that like-new appearance.

Bright White

Cream White

Desert Sand

Screens

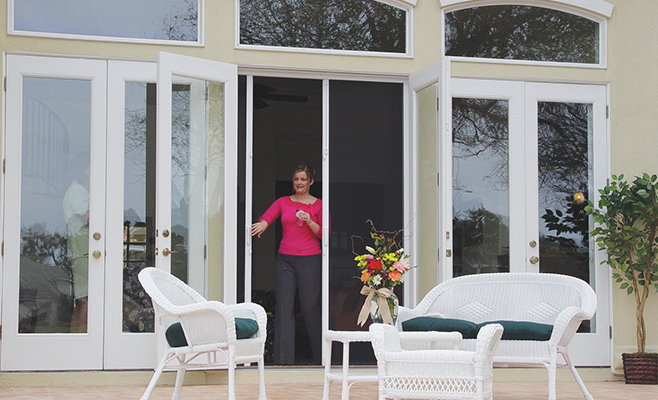

The Retractable Screen System allows screens to retract and be virtually out of sight when not in use. Retractable screens can be made to fit almost any door application. Screen heights up to 110" and widths up to 55" are available. (not available on architectural series)

Expand Your Door

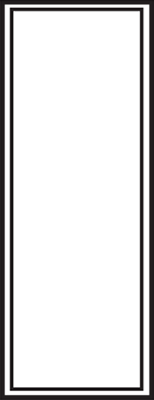

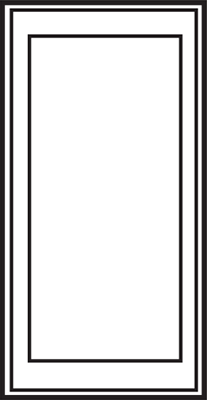

Choose from a variety of narrow-line or sash set French sidelites to expand your door. Structural mullion covers are available for multi-section doors.

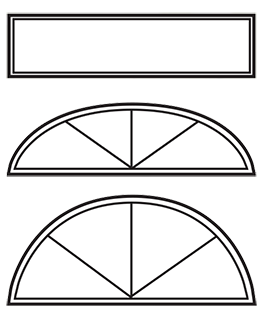

Also choose from a variety of transom lites above your door to create that truly grand entrance
